LPD 6K Series Product Line

Which LPD display is the right fit for your space?

Prysm's LPD 6K series is available in 2 standard sizes to enable companies to deliver a wow-factor in a greater variety of work spaces. The 225"(6K), 190" (6K) and 135" (4K) both boast the same interactive capabilities, contrast ratio, fill factor, pixel pitch, and color processing. And both offer a rollable panel that fits in a standard elevator. Key product specifications for each can be found below for comparison.

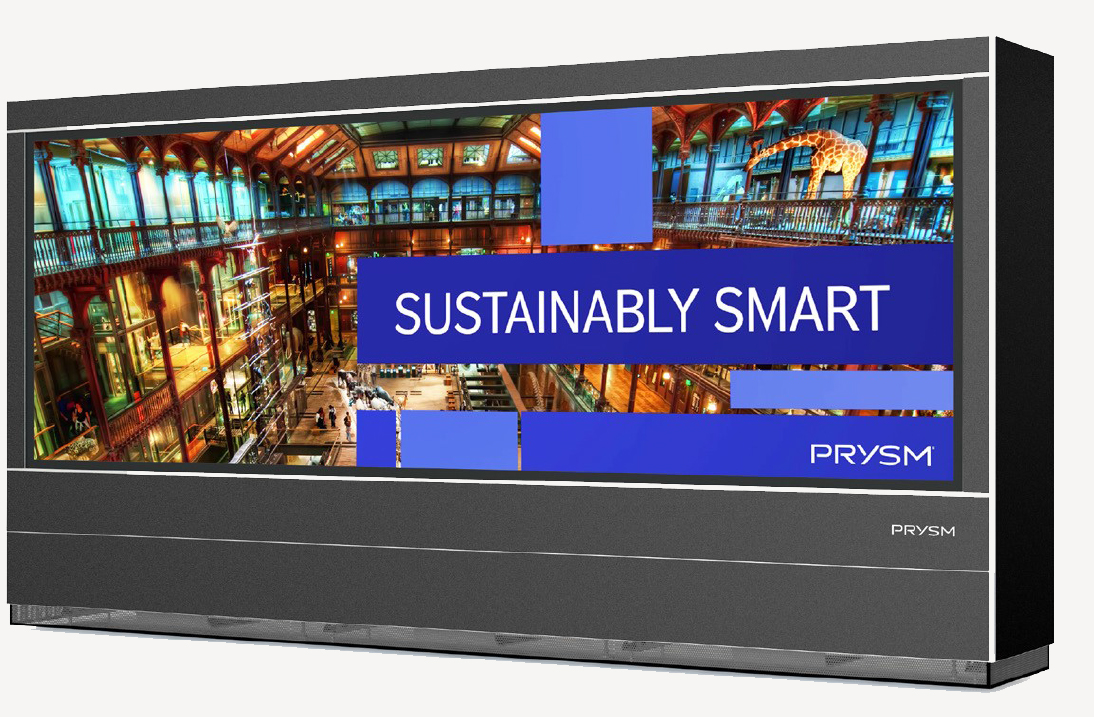

LPD 6K Series 225" (7K)

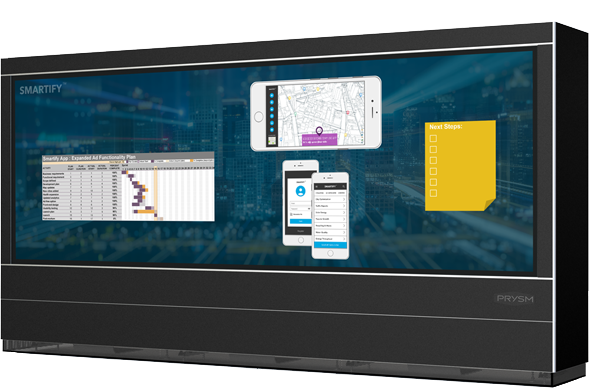

LPD 6K Series 190" (6K)

LPD 6K Series 135" (4K)

comparison-190 comparison-135

Image resolution: 6864 x 1872 pixels

Image resolution: 5616 x 1872 pixels

Image resolution: 3744 x 1872 pixels

Total pixel count: 12.9 million

Total pixel count: 10.5 million

Total pixel count: 7 million

Fill factor:90%

Fill factor: 90%

Fill factor: 90%

Field rate: 360 Hz
Contrast ratio:
1,000,000 : 1 (sequential)
Color depth:
10 bits per RGB color (1 billion colors)
Viewing angle:
178 degrees

Field rate: 360 Hz
Contrast ratio: 1,000,000 : 1 (sequential)
Color depth: 10 bits per RGB color (1 billion colors)
Viewing angle: 178 degrees

Field rate: 360 Hz
Contrast ratio: 1,000,000 : 1 (sequential)
Color depth: 10 bits per RGB color (1 billion colors)
Viewing angle: 178 degrees

Total image area: 12,679 sq in 8.18 sqm

Total image area: 10,370 sq in 6.70 sqm

Total image area: 6912 sq in 4.45 sq m

Image seams/Bezels: None

Image seams/Bezels: None

Image seams/Bezels: None

Display Dimensions (WxHxDiagonal):
216 in x 59 in x 224 in
5491 mm x 1490 mm x 5689 mm

Display Dimensions (WxHxDiagonal):
177 in x 59 in x 186 in
4493 mm x 1490 mm x 4734 mm



Display Dimensions (WxHxDiagonal):
118 in x 59 in x 132 in
2995 mm x 1490 mm x 3345 mm

Overall Dimensions (WxHxDepth):
230 in × 98.0 in × 30.8 in
5833 mm x 2488 mm x 753 mm


Front service. No backspace required for service.

Overall Dimensions (WxHxDepth):
190.3 in × 98.0 in × 30.8 in
4834 mm x 2488 mm x 753 mm


Front service. No backspace required for service.

Display Dimensions (WxHxDiagonal):
118 in x 59 in x 132 in
2995 mm x 1490 mm x 3345 mm

Floor loading:
38.0 lbs per ft² / 185.5 kg/m²

Floor loading:
38.0 lbs per ft² / 185.5 kg/m²

Floor loading:
38.0 lbs per ft² / 185.5 kg/m²

Touch type: High-resolution IR

Touch type: High-resolution IR

Touch type: High-resolution IR

Touch points: 32 simultaneous touch points

Touch points: 32 simultaneous touch points

Touch points: 32 simultaneous touch points

Display lifetime: >60,000 hrs (to 50% initial brightness)

Display lifetime: >60,000 hrs (to 50% initial brightness)

Display lifetime: >60,000 hrs (to 50% initial brightness)

Download Product brief for additional details

Download product brief for additional details

Download product brief for additional details





Request a Quote
